CRYSTAL ECODESIGN LINE
WOOD INSERTS

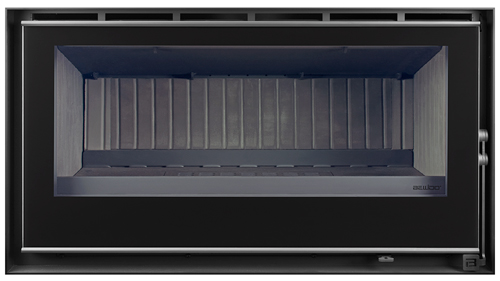

CRYSTAL FLAME 100
INTERIOR
BLACKERAM®
EFFICIENCY
ECOLOGIC
DESCRIPTION
Ecodesign Wood Inserts.
- Ecological design “ECODESIGN” of sustainable combustion products without harming the environment.
- The “Crystal Flame” 70, 80 and 100 inserts are the ideal solution for your home.
- Safe, practical, silent and ecological that allow heating very large surfaces in very short-time periods.
- Wood-burning insert in modern design, interior in BLACKERAM®.
- Provided with a forced ventilation system with a silent double-body tangential turbine of up to 220 m3. Two speeds and safety thermostat.
- Prearranged for 2 outlets to channel hot air to connecting rooms
- Post combustion system.
- Available in 3 sizes: 70, 80 and 100.
TECHNICAL DATA
DIMENSIONS
A |
B |
C |
D |
E |
F |
G |
I |
|
98 |
55,5 |
46 |
17,5 |
18,2 |
27 |
12,5 |
12 |
cm |
![INSERTABLES DE LEÑA ECODESIGN](https://www.bellido.eu/wp-content/uploads/2022/03/Llama-Cristal-100-Ecodesign-2022-1.jpg)
OPTIONAL
Trim frame with Black Steel or Stainless Steel finish.
- BLACK FRAME: 50 mm & 20 mm.
- STAINLESS STEEL FRAME: 50 mm & 20 mm.
![](https://www.bellido.eu/wp-content/uploads/2013/06/Marcos.jpg)
Deluxe kit (Glass fastening and closing system in stainless steel).
External regulator for ventilation system.
![](https://www.bellido.eu/wp-content/uploads/2022/03/Sistema-de-ventilacion.jpg)
Silent ventilation kit with remote control.
Provided with a forced ventilation system with a silent double-body tangential turbine of up to 220 m3. Two speeds and safety thermostat.
![](https://www.bellido.eu/wp-content/uploads/2022/03/KIT-VENTILACION-CON-MANDO-1.jpg)
Height to be defined.
